特性：一體化機身設計，更堅固耐用。
用途：管道法蘭盤螺栓預緊、拆卸。

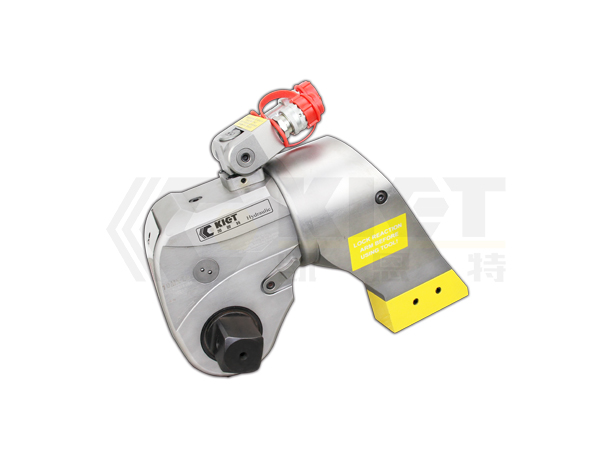

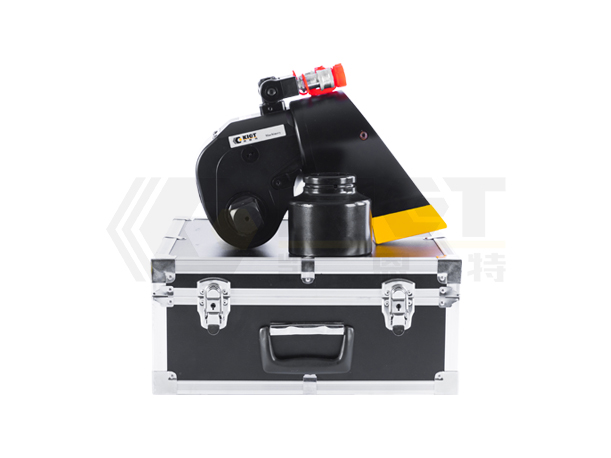

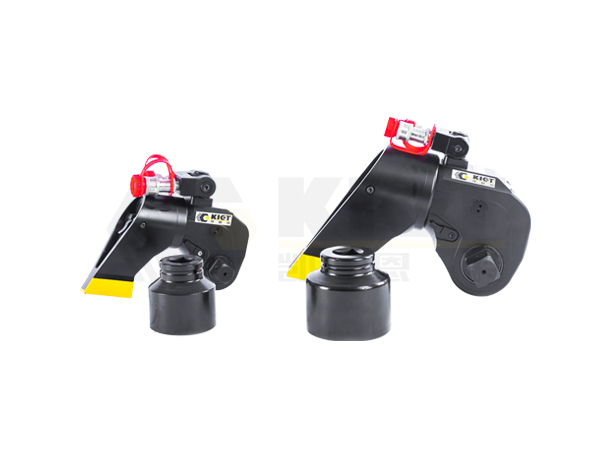

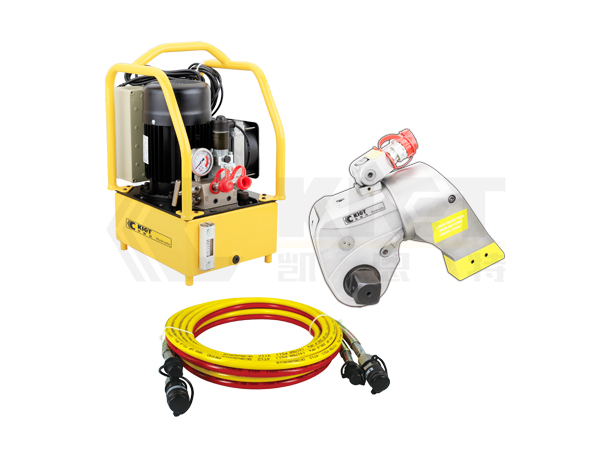

驅動式液壓扭矩扳手技術參數

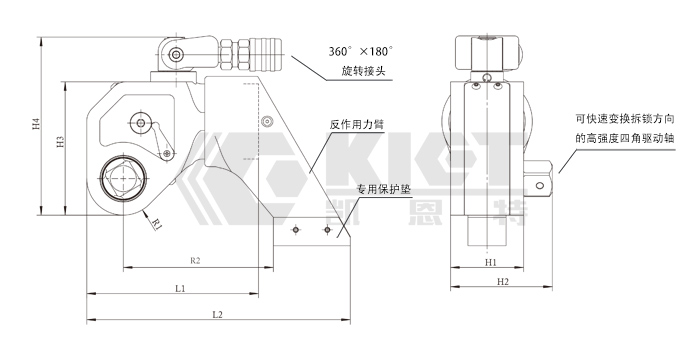

| 規格型號 | 扭矩范圍 （Nm） | 螺栓規格(M) | 驅動軸 (") | L1 (mm) | L2 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H4 (mm) | R1 (mm) | R2 (mm) | 重量 (kg) |
| KET-1MXTA | 183-1837 | 16-36 | 3/4 | 133.5 | 185.5 | 50 | 72 | 35.5 | 131 | 26 | 99 | 2 |
| KET-3MXTA | 451-4512 | 22-48 | 1 | 169 | 242 | 68 | 95 | 127 | 176.5 | 34 | 134 | 4 |
| KET-5MXTA | 752-7528 | 27-56 | 1-1/2 | 202.5 | 271 | 80 | 123 | 149 | 199 | 39 | 137 | 7 |
| KET-8MXTA | 1078-10780 | 30-64 | 1-1/2 | 216 | 309 | 90 | 134 | 167 | 216.5 | 47 | 171 | 9.1 |
| KET-10MXTA | 1551-15516 | 36-72 | 1-1/2 | 237.5 | 340.5 | 100 | 142 | 182 | 231.5 | 51 | 174 | 13.1 |
| KET-15MXTA | 2063-20627 | 39-80 | 2-1/2 | 285 | 395 | 110 | 178 | 200 | 146 | 55 | 222 | 21 |
| KET-20MXTA | 2666-26664 | 42-90 | 2-1/2 | 299.5 | 466.5 | 120 | 183 | 220 | 269.5 | 59 | 250.5 | 25 |
| KET-25MXTA | 3472-34725 | 48-100 | 2-1/2 | 313 | 461 | 137 | 200 | 249 | 296.5 | 66 | 250.5 | 31 |
| KET-35MXTA | 4866-48666 | 64-120 | 2-1/2 | 361.5 | 496.5 | 153 | 216 | 282 | 331.5 | 77 | 271 | 45 |
| KET-50MXTA | 7200-72000 | 72-125 | 2-1/2 | 400 | 516 | 160 | 223 | 291 | 341 | 81 | 259 | 87 |
